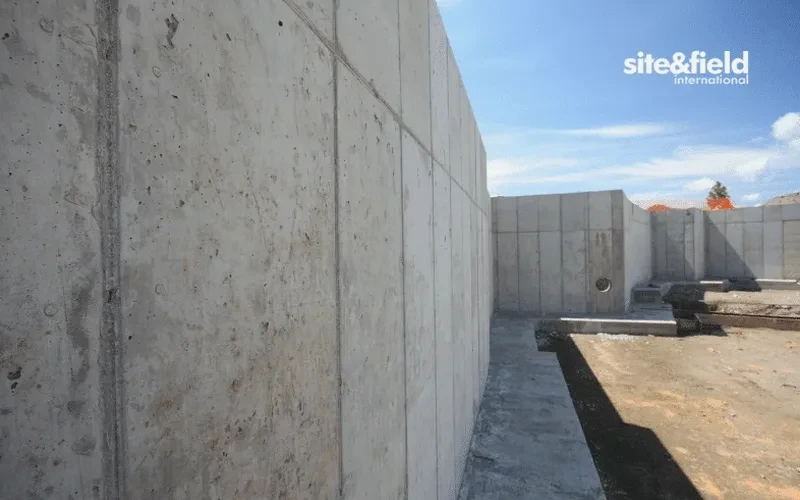

Kitchener’s expansion from an inland Mennonite settlement into a major tech hub has pushed development onto complex glacial terrain. The city sits on a mosaic of Port Stanley Till, sandy outwash, and pockets of compressible silt, all shaped by the retreat of the Wisconsinan ice sheet. Builders often hit groundwater just a few feet down. A retaining wall here isn't a generic concrete pour. It needs to handle lateral earth pressures that shift with the seasons and a frost line that reaches 1.2 meters. We combine local drilling data with slope stability analysis to verify global stability before a single pile goes in. For projects near the Grand River valley or along Highway 8, understanding the interaction between the wall and the native till is what keeps the structure serviceable for decades.
A retaining wall in Kitchener lives or dies by its drainage. We design the backfill envelope first, the concrete second.
Methodology and scope
Site-specific factors
In Kitchener, we frequently see retaining walls with no functioning drainage. The original builder placed the wall, backfilled with on-site silty clay, and skipped the drain pipe. Within two winters, hydrostatic pressure builds up, the wall tilts, and the owner faces a six-figure remediation bill. The other common mistake is ignoring the setback from property lines. The Region of Waterloo has strict zoning by-laws, and a wall that encroaches even slightly triggers a stop-work order. A proper geotechnical design submitted with the building permit package eliminates these headaches. We also check for global instability: a wall at the top of a slope can fail if the entire hillside moves beneath it. That scenario is all too real in the rolling topography west of the downtown core.
Reference standards
NBCC 2020 (National Building Code of Canada), CSA A23.3:19 (Design of Concrete Structures), CSA S6:19 (Canadian Highway Bridge Design Code – for MSE walls), OPSS 206 (Ontario Provincial Standard for granular backfill)
Associated technical services
Geotechnical Investigation
Drilling, test pits, and laboratory testing to define the soil parameters your wall design depends on.
Structural Wall Design
Reinforced concrete cantilever, counterfort, and gravity wall designs stamped by a Professional Engineer.
MSE Wall Design
Mechanically stabilized earth walls with geogrid reinforcement, ideal for rapid construction on constrained sites.
Construction Review
Field review during backfill placement and drainage installation to confirm compliance with the design intent.
Typical parameters
Frequently asked questions
What does a retaining wall design cost in Kitchener?
Fees typically range from CA$1,600 for a straightforward gravity wall under 1.2 m to CA$6,320 for a fully engineered MSE wall with geogrid reinforcement and stamped drawings. The spread depends on wall height, site access, and the extent of the required geotechnical investigation.
Do I need a building permit for a retaining wall in Kitchener?
Yes, the City of Kitchener requires a building permit for any retaining wall over 1.0 m in height, or any wall supporting a surcharge such as a driveway or building. Engineered drawings are mandatory as part of the permit application.
How do you handle the high groundwater table in Kitchener?
We design a drainage system behind the wall — typically a continuous perforated pipe at the base, wrapped in filter fabric, with free-draining granular backfill extending at least 300 mm from the wall face. This prevents hydrostatic pressure from building up during spring thaw.
What soil conditions in Kitchener affect wall design the most?
The Port Stanley Till is the dominant soil unit. It’s a silty clay till that can be stiff when dry but loses strength rapidly when wet. We run triaxial and Atterberg limits tests to nail down the drained friction angle and undrained shear strength for the design model.
