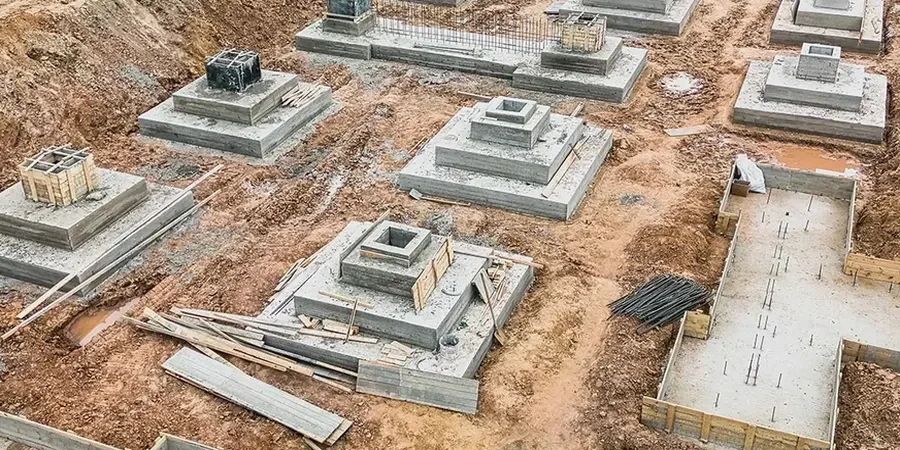

Designing pile foundations in Kitchener requires an intimate understanding of the geological contrasts between the east and west sides of the city. East of the Grand River, the overburden is dominated by the dense, silty-clay Port Stanley Till, a lodgement till deposited directly beneath the Laurentide Ice Sheet that can support substantial end-bearing loads. West Kitchener, particularly near the Waterloo Moraine, presents a more complex sequence of interbedded sands and gravels overlying the till. This variability means that a pile designed for friction in the west end might bear on hard till in the east. The city sits at an elevation of roughly 330 meters, and bedrock, when encountered, is typically dolostone of the Guelph Formation, though the depth to rock varies dramatically. We integrate site-specific stratigraphy from spt-drilling data to refine unit skin friction and end-bearing parameters before finalizing any pile group configuration.
Kitchener's Port Stanley Till provides exceptional end-bearing capacity once you penetrate the weathered crust — the design challenge lies in quantifying the transition depth across a site.
Methodology and scope
Site-specific factors
Kitchener recorded a population of over 256,000 in the 2021 census, driving significant mid-rise and industrial expansion into areas with marginal ground. A primary geotechnical risk in pile design here is the potential for soft clay infillings within buried bedrock valleys, a legacy of pre-glacial drainage systems. A pile terminating in what appears to be competent till may actually be founded on a soft lacustrine deposit if the valley extent is not mapped. This leads to excessive settlement and potential pile group failure. The second risk is construction-induced vibration from driven piles affecting adjacent historical masonry structures, common in the downtown core. The NBCC 2020 seismic provisions require a site-specific soil classification; assuming Site Class C without shear wave velocity measurements from masw can unconservatively underestimate the spectral acceleration, especially on the thick sand deposits of the moraine.
Reference standards
National Building Code of Canada (NBCC) 2020 — Seismic and structural design provisions, CSA A23.3 — Design of concrete structures (for bored and CFA piles), ASTM D1143 — Standard Test Methods for Deep Foundation Elements Under Static Axial Compressive Load, Canadian Foundation Engineering Manual (CFEM) — Static analysis methodology
Associated technical services
Axial Capacity Analysis
Static calculation of unit skin friction and end-bearing resistance using CFEM methods calibrated to local Port Stanley Till parameters and SPT N-values.
Settlement and Group Efficiency
Elastic and consolidation settlement analysis for pile groups, including interaction factors for closely spaced piles subject to structural loads.
Pile Load Test Design and Interpretation
Design of static axial compressive load test programs per ASTM D1143, including instrumentation layout, reaction system design, and Davisson offset interpretation for Kitchener sites.
Typical parameters
Frequently asked questions
What is the typical cost range for a pile foundation design package in Kitchener?
A complete pile foundation design package for a typical Kitchener project, including axial capacity analysis, settlement calculations, and a load test specification, generally falls between CA$2.310 and CA$8.890. The final figure depends on the number of pile types, the complexity of the soil profile, and whether dynamic or static load testing supervision is included.
How does the Port Stanley Till affect pile design compared to other Ontario regions?
The Port Stanley Till in Kitchener is a dense, overconsolidated lodgement till with high silt and clay content. This differentiates it from the sandier tills found in eastern Ontario. The high undrained shear strength provides excellent capacity, but the upper weathered zone, typically 3 to 4 meters thick, must be discounted in skin friction calculations unless field load tests confirm otherwise. Pile design here must also account for the till's relatively low permeability, which can delay pore pressure dissipation during driving.
Is a pile load test mandatory for bored piles in Kitchener?
While the Ontario Building Code references NBCC requirements, static load testing is strongly recommended for bored piles on Kitchener sites with variable depth to the Guelph Formation bedrock or where piles are founded in the Waterloo Moraine sands. A test pile program, typically involving at least one preliminary test per distinct ground condition, provides the most reliable verification of the design parameters and construction methodology before production piling begins.
